In-Stock

Equipment Manufactured to Stock

Equipment manufactured to stock is ready to complete precisely to customer specifications and deliver in a short lead time.

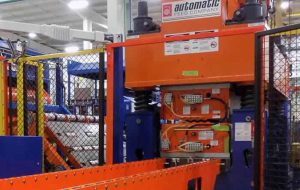

XLC-HSS Leveler – The Ultimate Material Flattener

Specifications:

  • Materials: Steel including HSS, and Aluminum
  • Max Width: 2134mm (84in)
  • Passline Height: 1370mm (54in)
  • Thickness: 0.5mm – 4.0mm
  • Max Line Speed: 90mpm

Features:

  • Automatic hydraulic clamping
  • Spiral grooved intermediate backup rolls
  • 50mm and 65mm cassettes, 13-roll work roll cassettes that are interchangeable between aluminum and steel
  • 6-high configuration
  • 140 Ton bridge capacity
  • 9 Banks of backups of which 7 are adjustable
  • Quick change splines and intermediate bearing housings

Options:

  • Automatic cassette change to support ADC
  • 4 High 50mm Cassette

HD-HSS Leveler

  • 6 High
  • 50mm Work Rolls
  • 140 Tons Bridge Capacity
  • 2134 mm Wide
  • 11 Banks of Backups
  • 9 Banks Adjustable

Remanufactured Equipment

Remanufactured Equipment is ready to be rebuilt to meet customer specifications, at an affordable price. This equipment is warrantied as new equipment, upgraded as needed with new drives, motors or components, and delivered within a short time frame.

High Pressure Hot Water Washer

  • Complete Water Treatment System
  • Oil-Water Separator
  • Right to Left Direction
  • 77 inch Passline Height

Conventional 2 Station Stacker with Parts Conveyor

  • Vacuum Retrofit Capable for Dual Material Application
  • Max Width 2032mm (80 inches)
  • Line Direction is Right to Left
  • Passline Height is TBD
